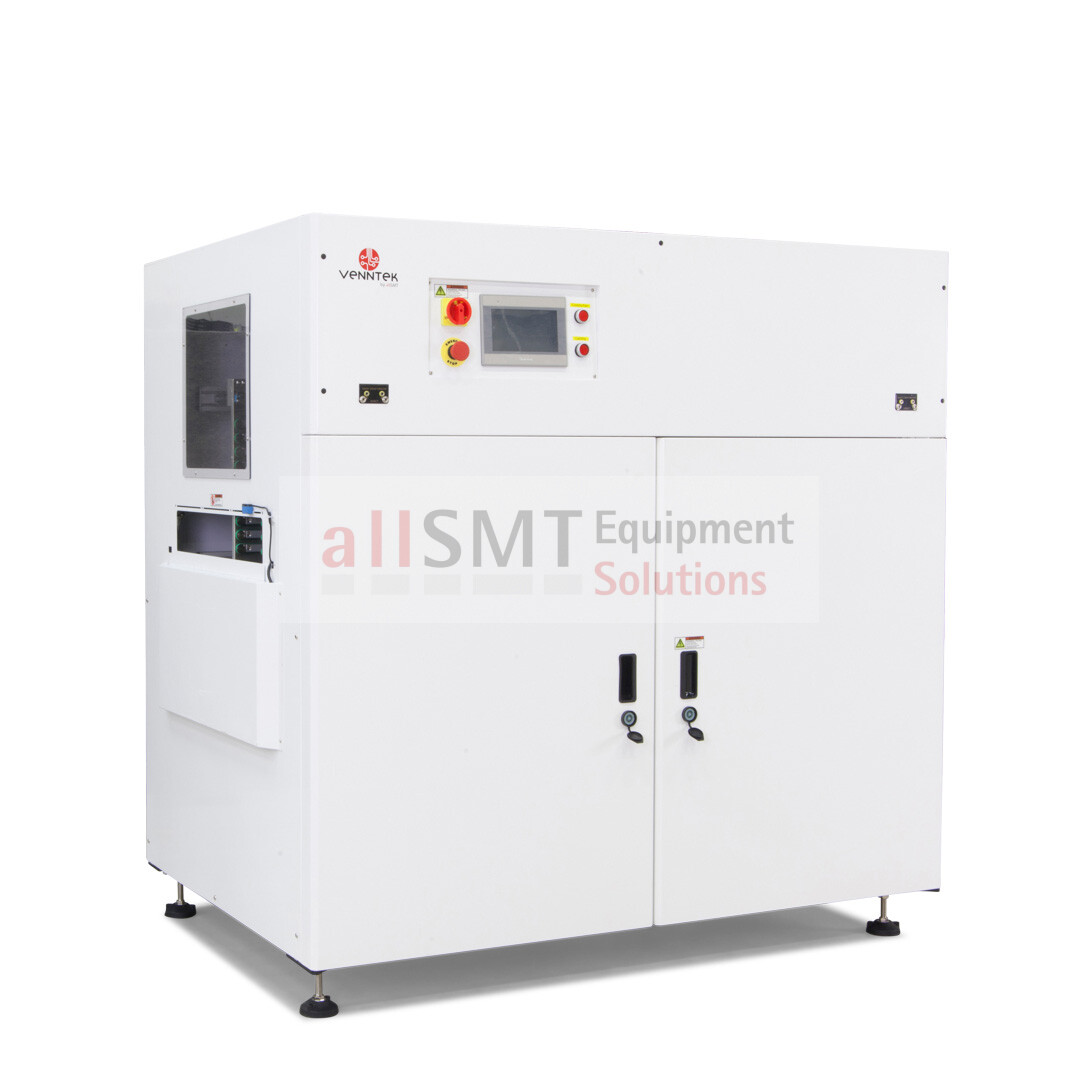

Long Board (LED) Buffer System 1500 mm Touchscreen/VT-Net
Item number: VT-LED-P-150-016

Long Board (LED) Buffer System 1500 mm Touchscreen/VT-Net

The LED boards' are collected from an upstream machine and transported into the Buffer System. This Unit can collect 10 pcs of PCB Boards and can be individually programmed.
Produktdetails anzeigen

Standard features

  • PLC Program control
  • Cooling fans
  • Selectable pitch settings
  • Towerlight display for machine status
  • Lifting platform is driven by servo motor
  • User-friendly “touch screen” control panel
  • Smooth and parallel width adjustment.(lead screw)
  • SMEMA compatible

Options

  • SMEMA cable(additional)
  • Additional board capacity
  • Other options available on request
https://www.vimeo.com/257088115

Item number VT-LED-P-150-016
Category Long Board PCB Handling
Transfer Direction: Left to Right
Communication: SMEMA
Operation: Touch Screen
Option Cooling: Yes
Option Venntek Net: Yes
Power Supply: AC 230V 50/60Hz 1PH
Year of Manufacturing: 2017
Width Adjustment: Automatic
Condition: Demo Unit
PCB Edge Support: 10mm Flatbelt
Max PCB Lenght: 1500mm
Max PCB Width: 500mm

This product consists of
