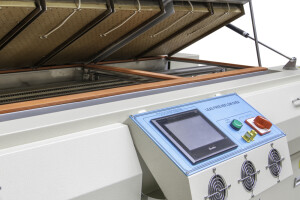

easyFlow 430 reflow soldering system

Part No.: easyFlow430

Category: Reflow Soldering Systems

Description & Technical data

Total Power:	23KW
Temperature Rising Time:	15min
Operation:	Touch Screen
PCB clearance Bot:	30mm
overall lenght:	1920mm
Heating Method:	Fully forced air convection
Heating Zones:	4 Top/ 4 Bottom
Cooling Zone:	Fan
Heating Tunnel:	980mm
Max PCB Width:	300mm
Max Temperature:	350°C
Communication:	SMEMA
Power Supply:	AC 380V 50/60Hz 3PH
Power Consumption:	3-7KW
Belt Speed:	0-900mm/min
Tranprt Height:	900mm+/-20mm
Transfer Direction:	Left to Right
Conveyor System:	Chain Conveyor Mesh Belt
