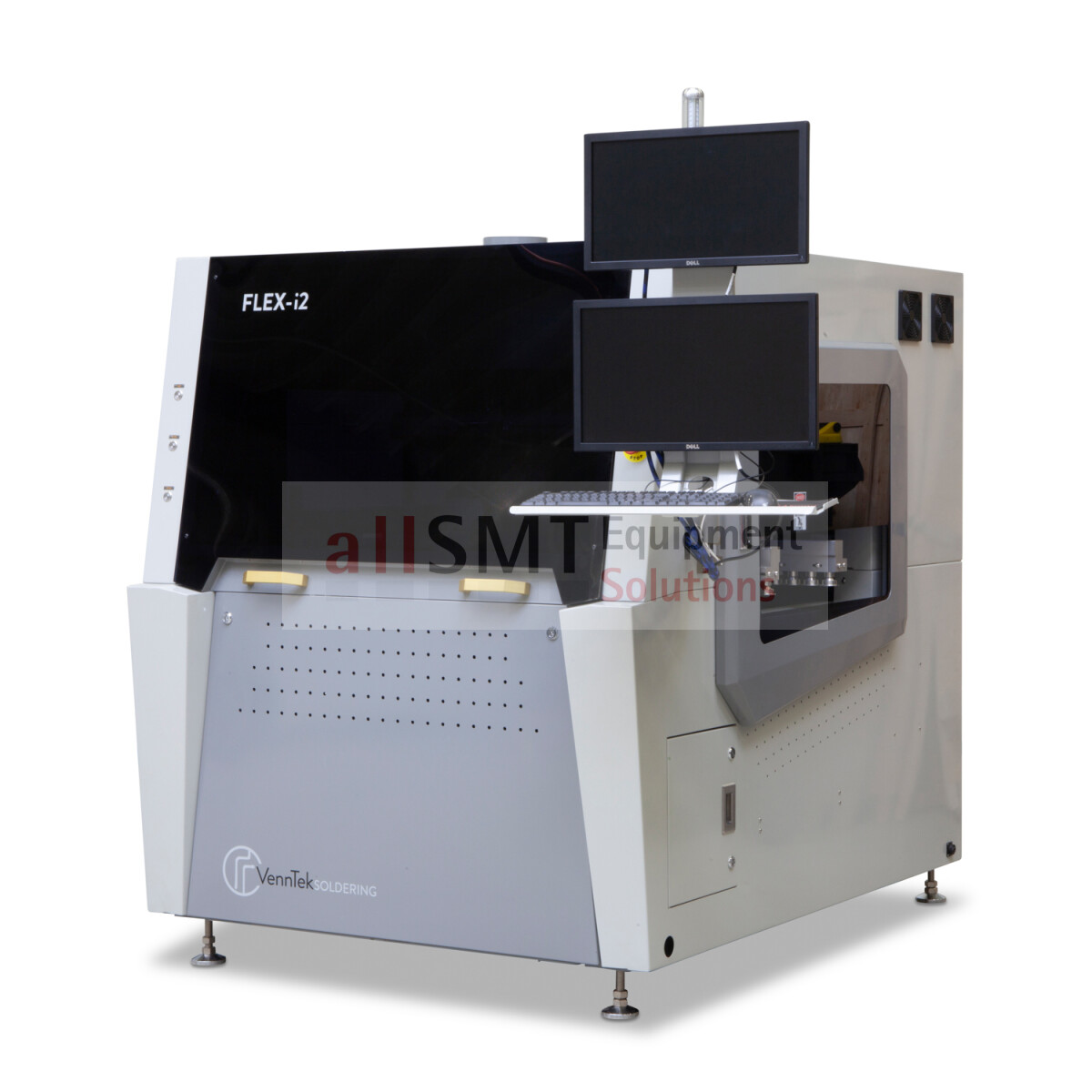

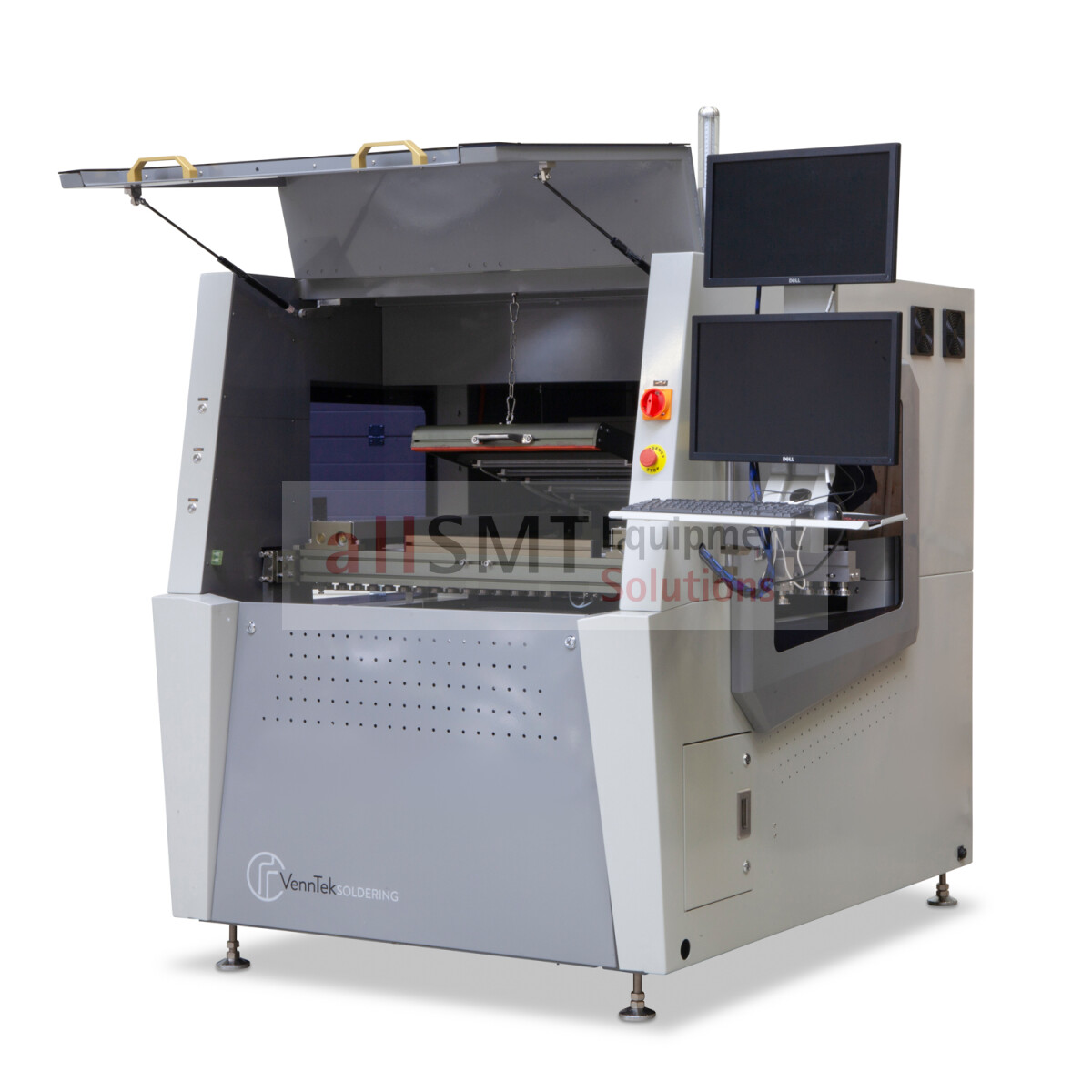

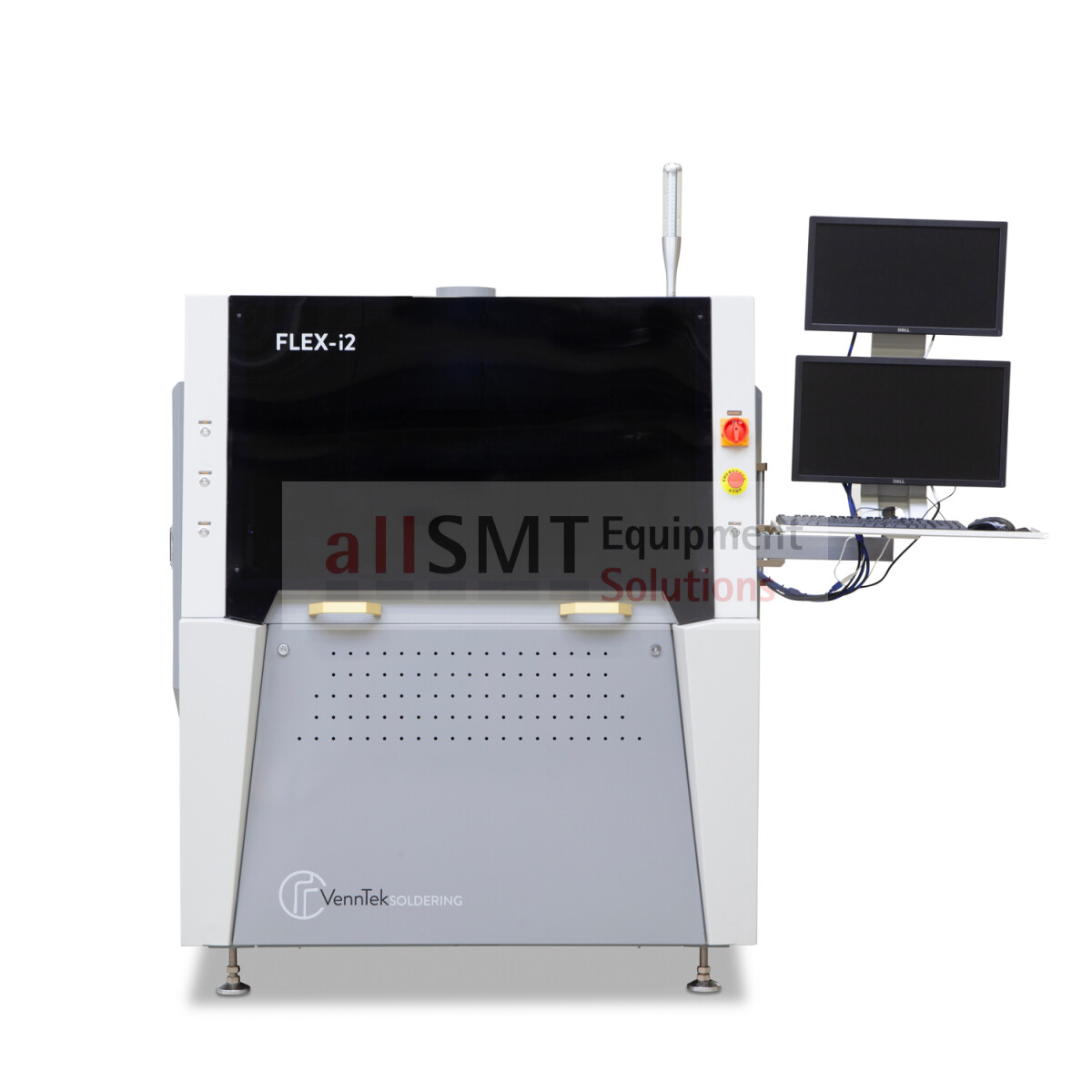

Inline Selective Soldering System Flex-i2

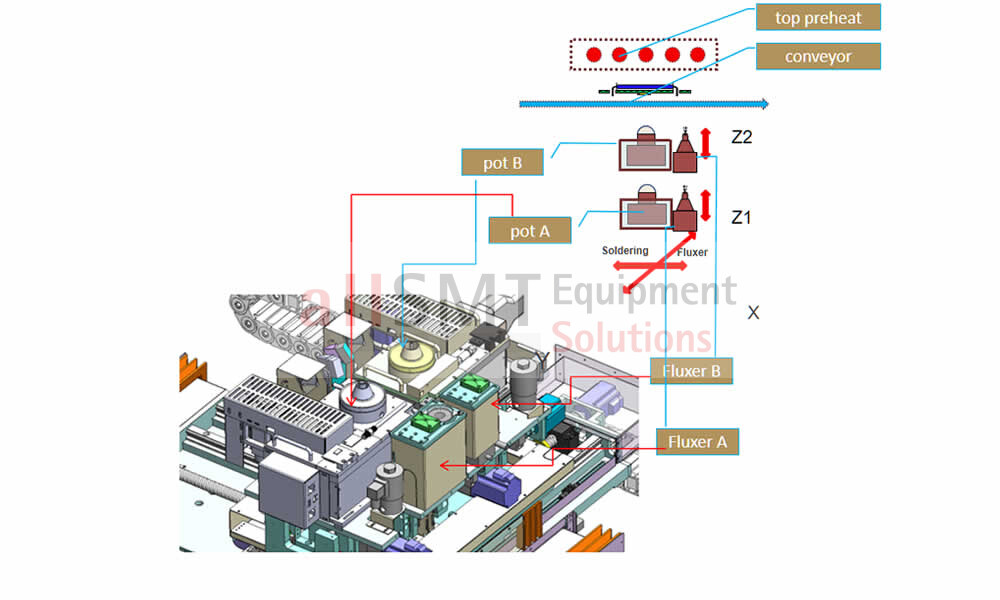

Highlights of the selective soldering system Flex-i2

- compact inline system with very small footprint

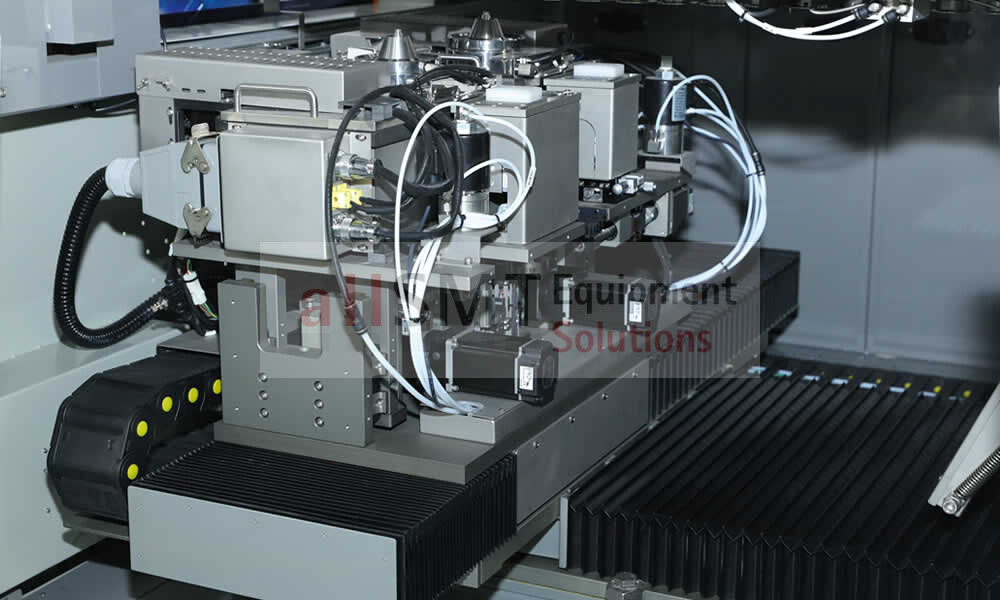

- 2 x titanium solder pot
- modern software with traceability, maintenance programs etc.
- electro-mechanical soldering wave pump (optional electromagnetic pump)
- Drop Jet Fluxer (optional dual fluxer)
- Dual IR preheater
- Fiducial detection
- Camera / monitor system for real-time testing of the soldering process
- Wave height calibration
- Best price-performance ratio in the market

Customizations possible any time.

any time.
Item number: all20192097
Category: Selectiv Soldering
Offline programming software
Fiducial checking camera
Upgrade to electro-magnetic pump
Auto solder wire adding system
Delete 2nd Z axis and solderpot

Increasing the maximum PCB dimensions to 508mm x 406mm

Flux flow quantity monitoring
MicroSpray nozzle
2nd flux nozzle drop jet type
2nd flux nozzle with MicroSpray type
Your configuration

Item number all20192097
Category Selectiv Soldering
Warranty by Manufacturer: 1 Jahr
Software: English
Type of machine: Inline
QTY Solder Pot: 2
Solder pot material: titan
Solder capacity: 15 Kg
QTY Flux: 2
Type of Flux: Drop Jet Fluxer
Preheater: IR Bottom IR Top
Flux capacity: 1000ml
PCB Measurements: 50x50mm - 420x490mm
N2 Consumption each solder pot: 4m³/H
Required N2 Purity: >99,99%
Heat-up time: 40min
Power supply: 3PH 380V 50Hz
Air Supply: 3-5 Bar
Exhaust: 800m³/H
Weight: 900KG
Machine dimensions: B 1420mm x T 1725mm x H 1700mm
Transport System: Stainless Steel Rollers( no carrier needed)
Live Soldering process monitoring: inclusive
Wave height calibration function: inclusive
