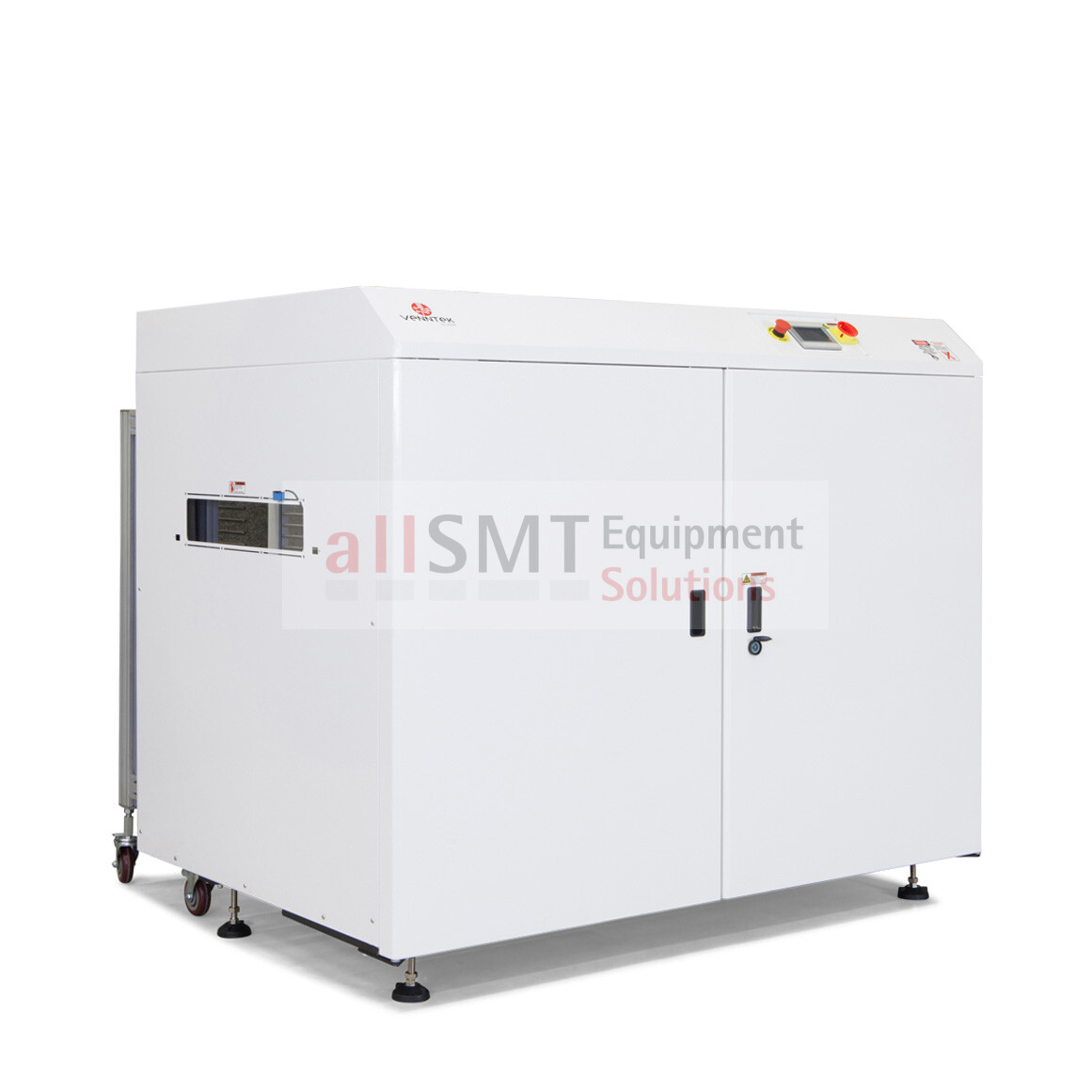

Long Board Unloader
Art.Nr.: VT-LED-E

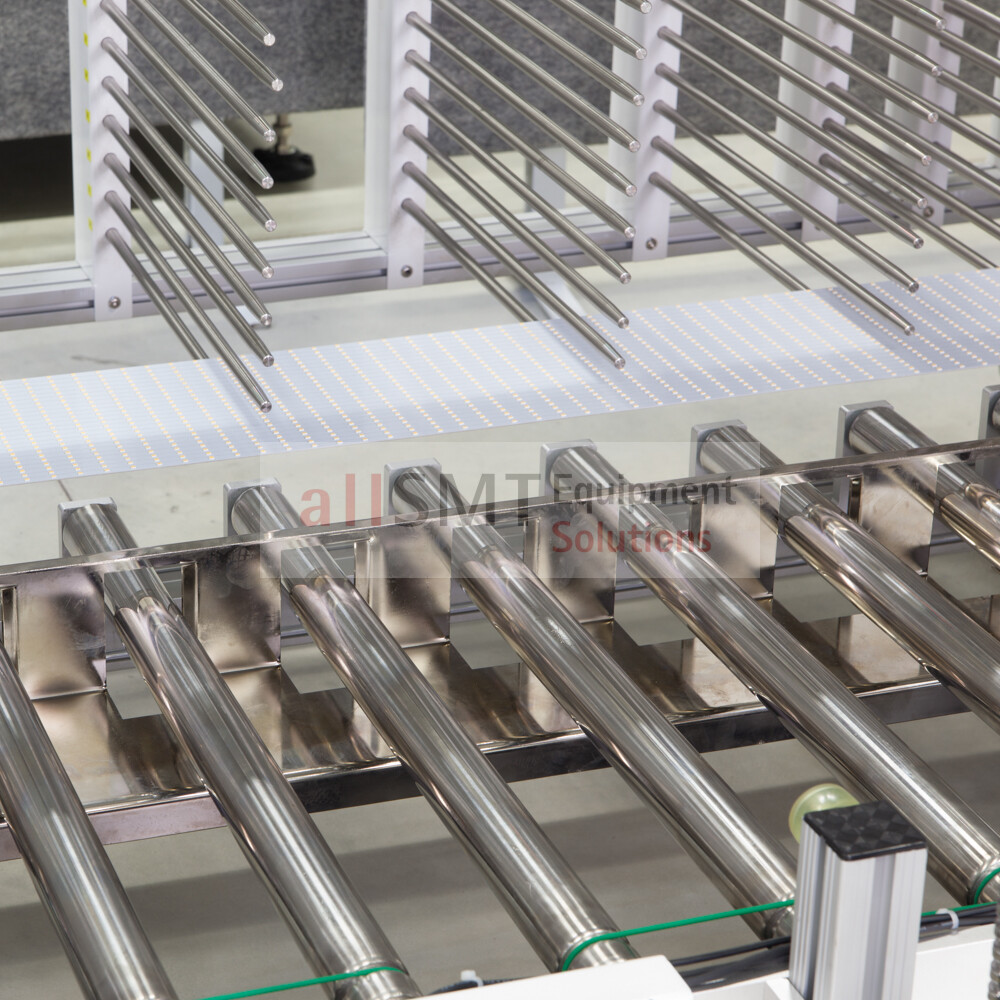

The LED boards' are collected from upstream machine using attached conveyor and pushed into the stcoker car.
PCB Length
Produktdetails anzeigen

Standard features

  • PLC Program control
  • Selectable pitch settings
  • Towerlight display for machine status

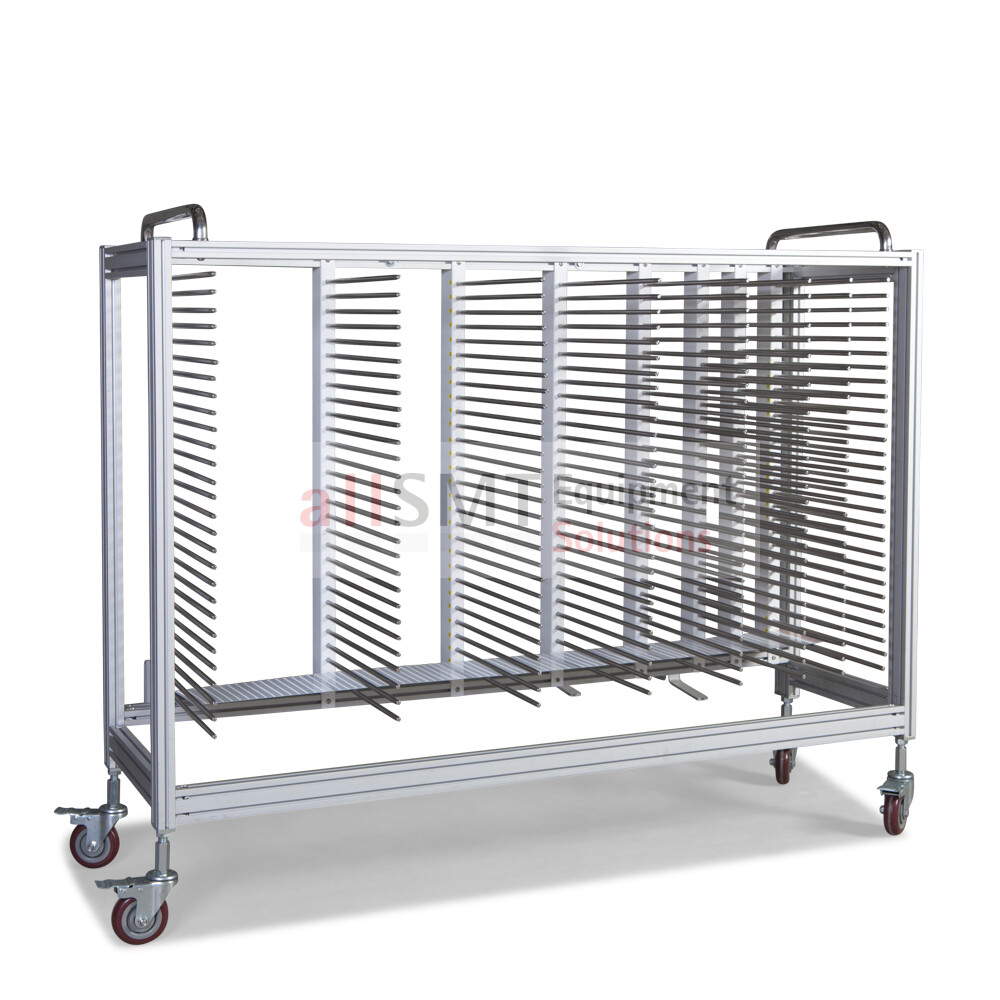

  • Flexible stocker car easy to transport
  • Lifting platform drive by servo motor
  • Exchange stocker car from the rear of the machine
  • User friendly “touch screen” control panel
  • Smooth and parallel width adjustment.(lead screw) Stocker car is manually placed on the platform and clamped in position
  • SMEMA compatible

Options

  • SMEMA cable(additional)
  • Additional board capacity
  • Other options available on request

https://vimeo.com/256766279


Item number VT-LED-E
Category Long Board PCB Handling
Operation: Touch Screen
External air pressure: 4-6 bar
Fixed Rail: Front
PCB Edge Support: Stainless Roller
Air consumption: 10 ltr/min
PCB stock capability: 28 PCB´s
Max PCB Width: 400mm 500mm
Max PCB Lenght: 1500mm 1200mm
Communication: SMEMA
Power Supply: AC 230V 50/60Hz 1PH
Power consumption: 350W
Belt Speed: 16m/min
Tranprt Height: 900mm+/-20mm
Transfer Direction: Left to Right
